APPLICATION

Aluminum Conductor Alloy Reinforced (ACAR) cable is an excellent conductor choice where current carrying capacity, higher strength and a lower conductor weight are critical to the line design.

CONSTRUCTION

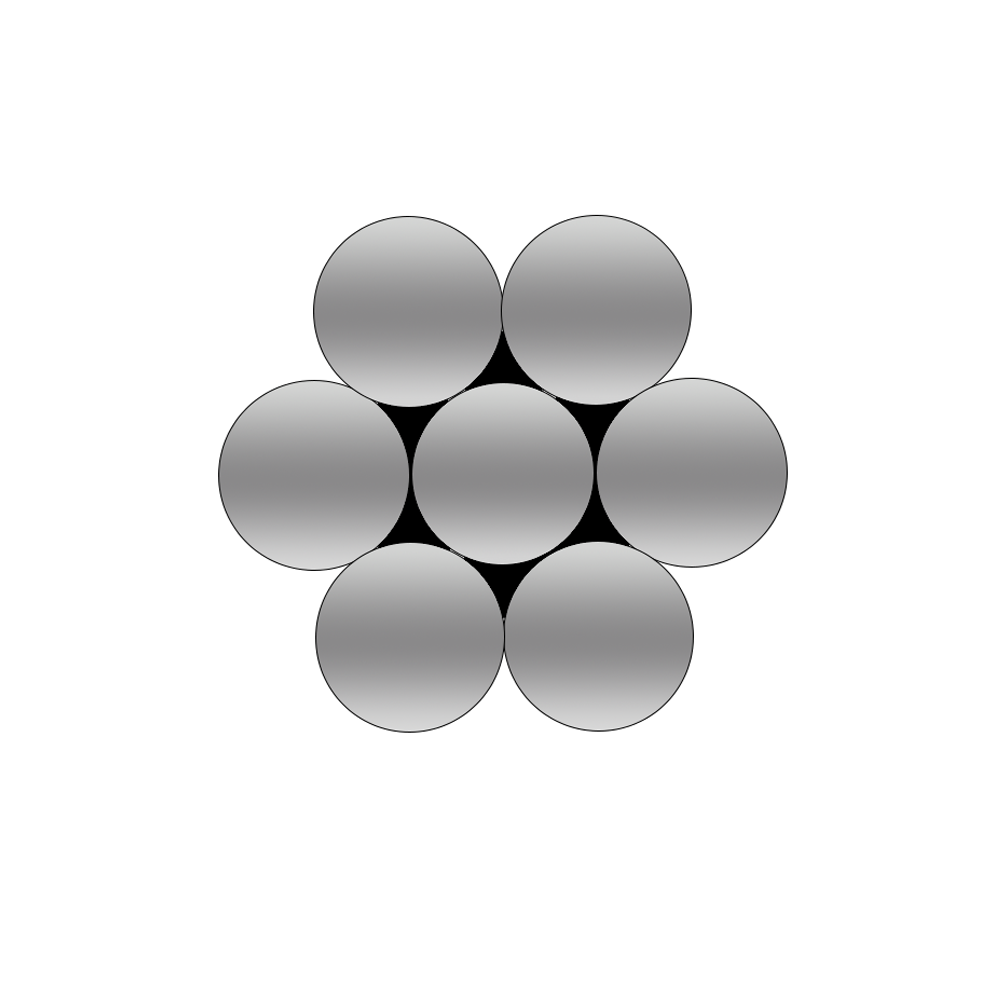

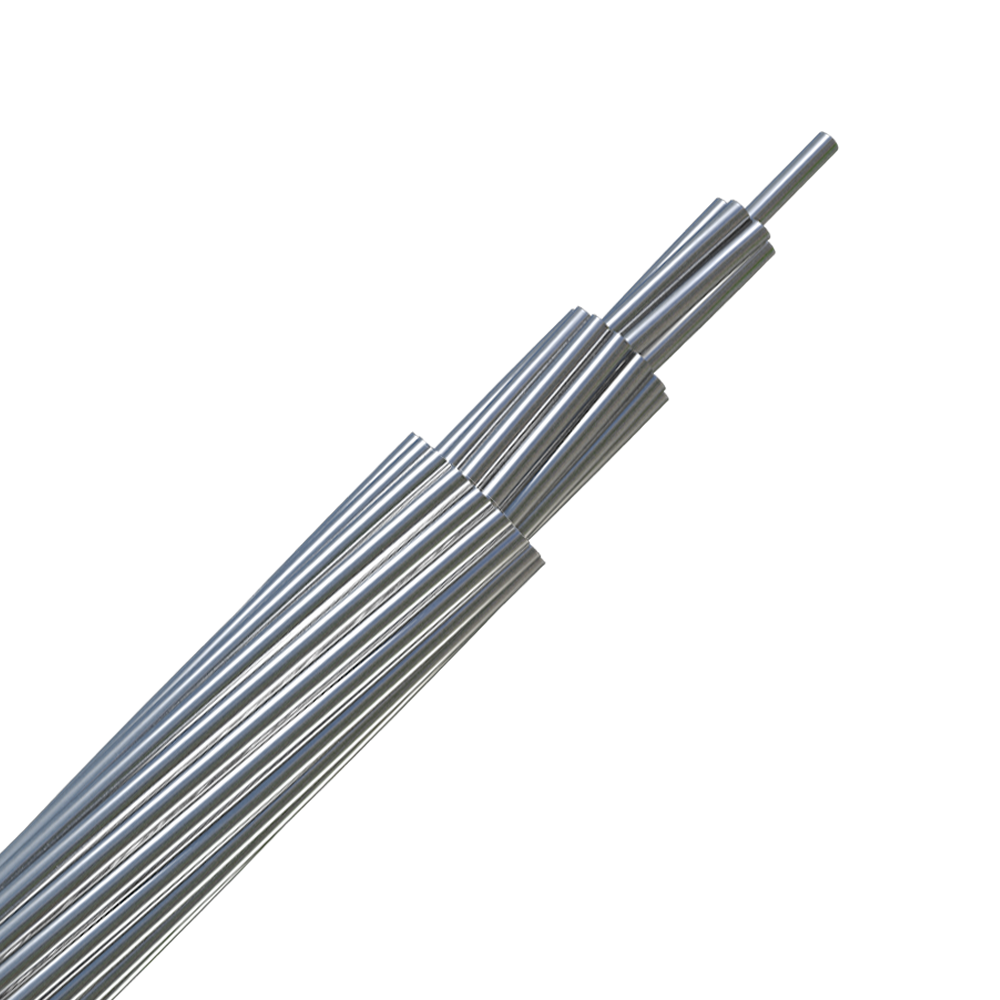

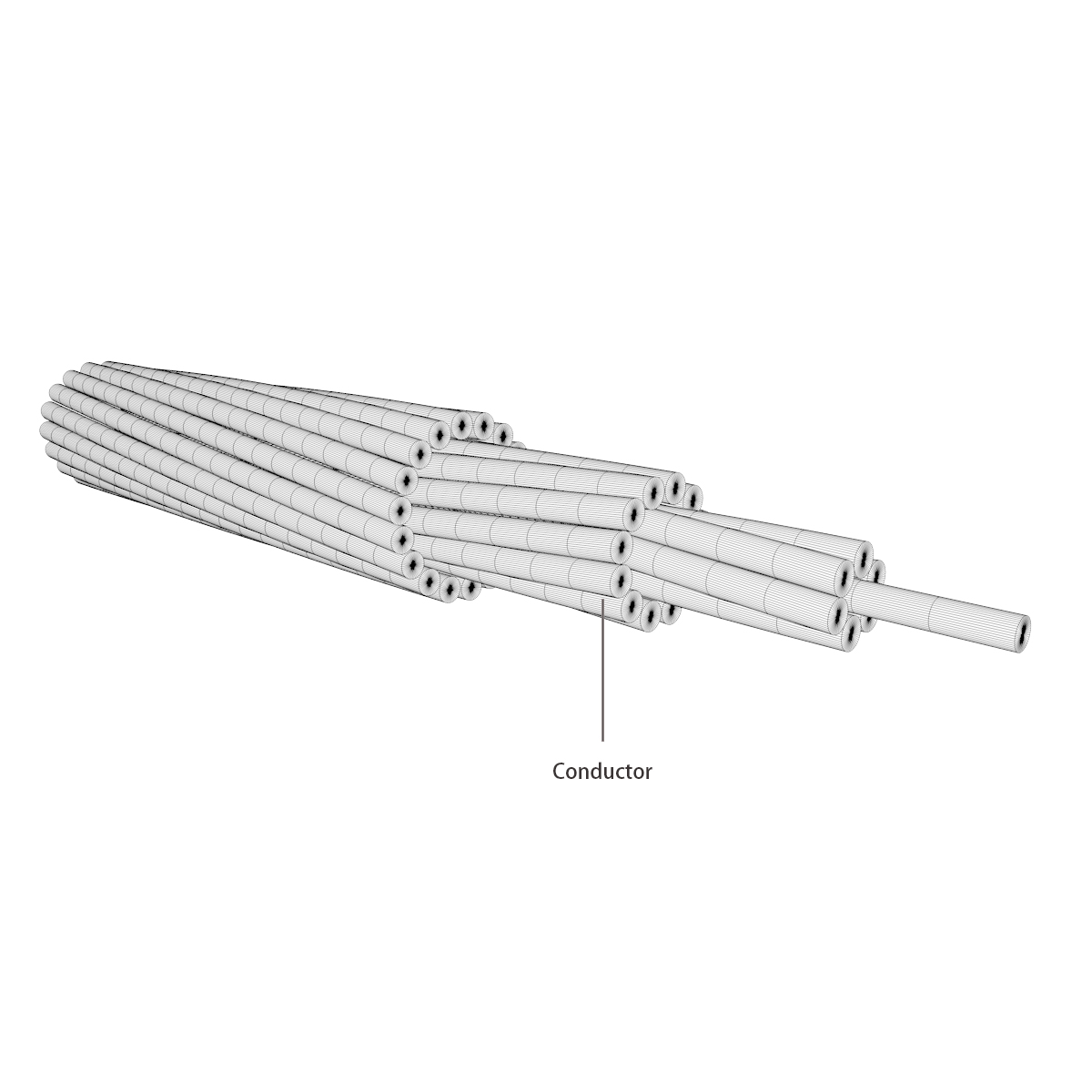

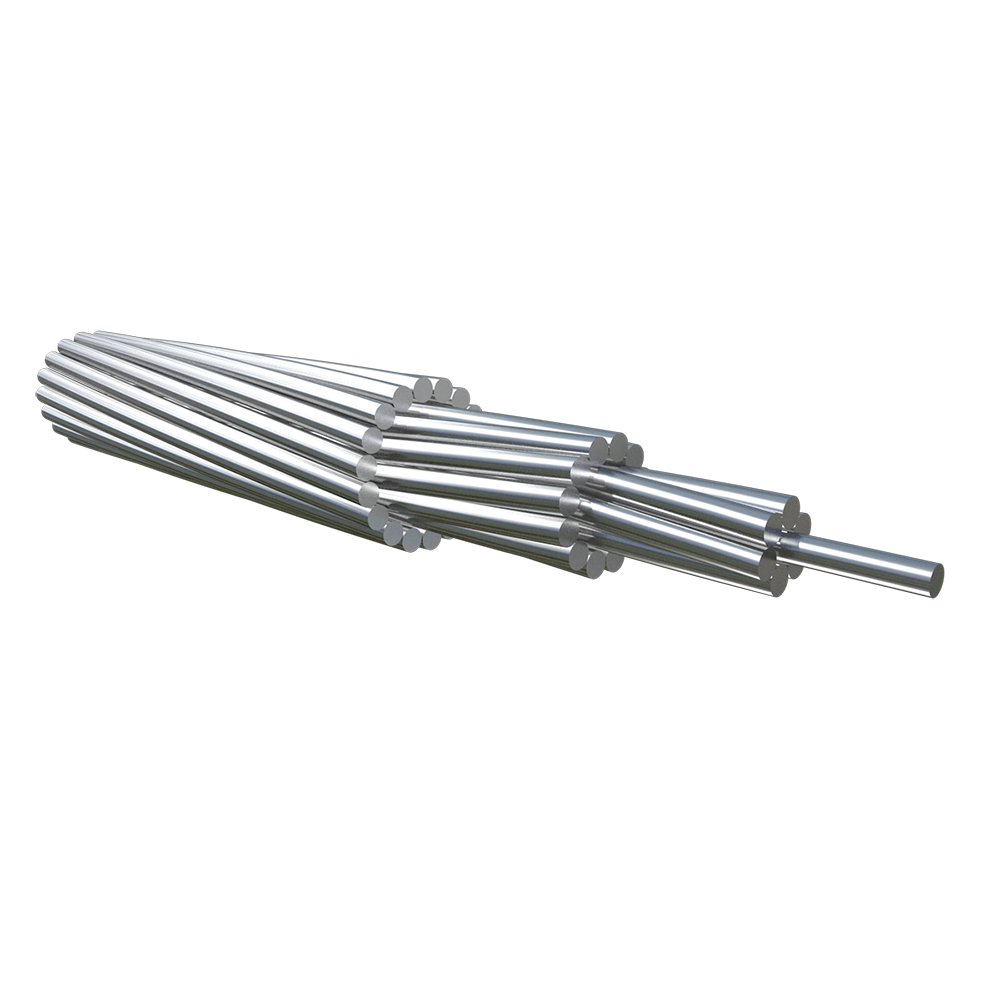

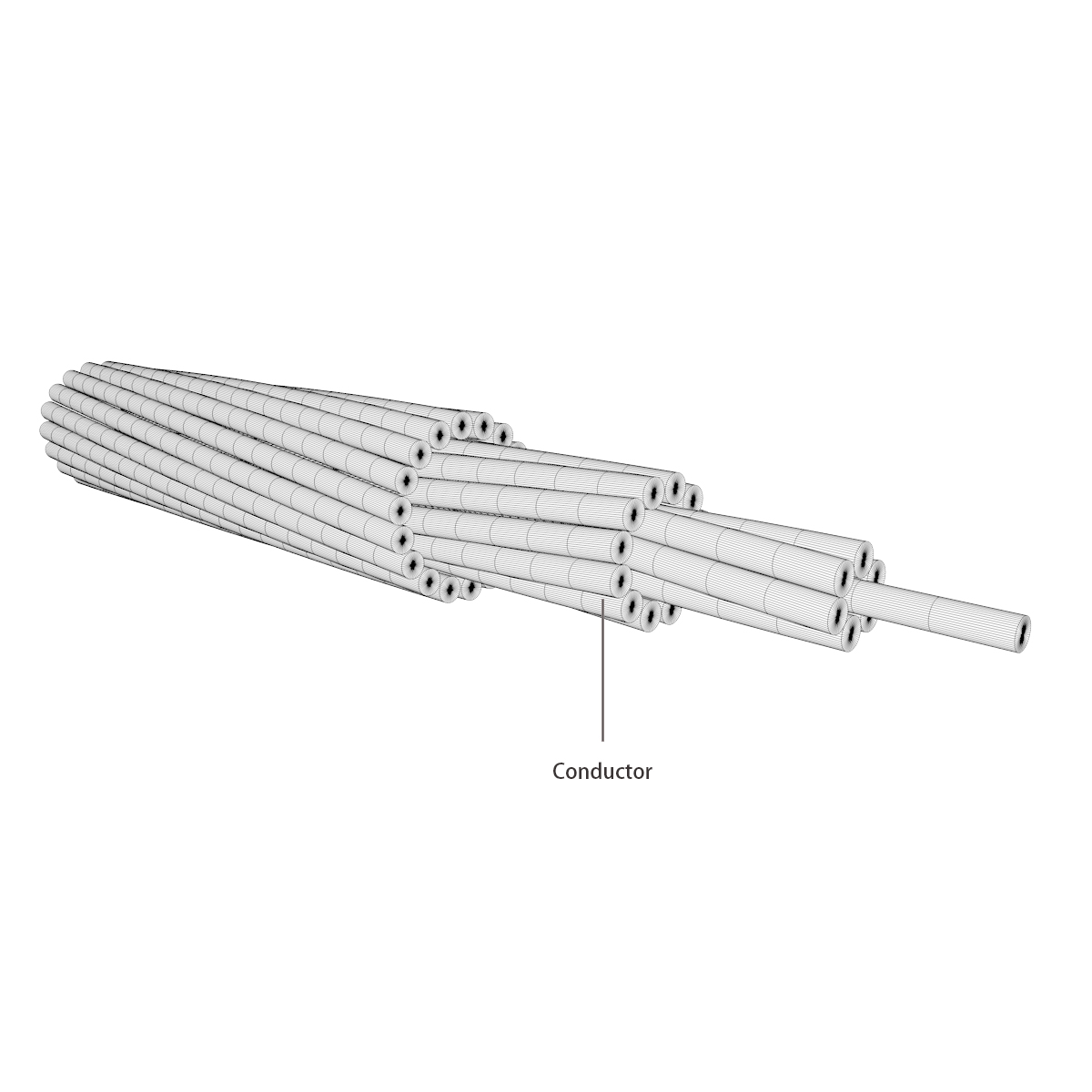

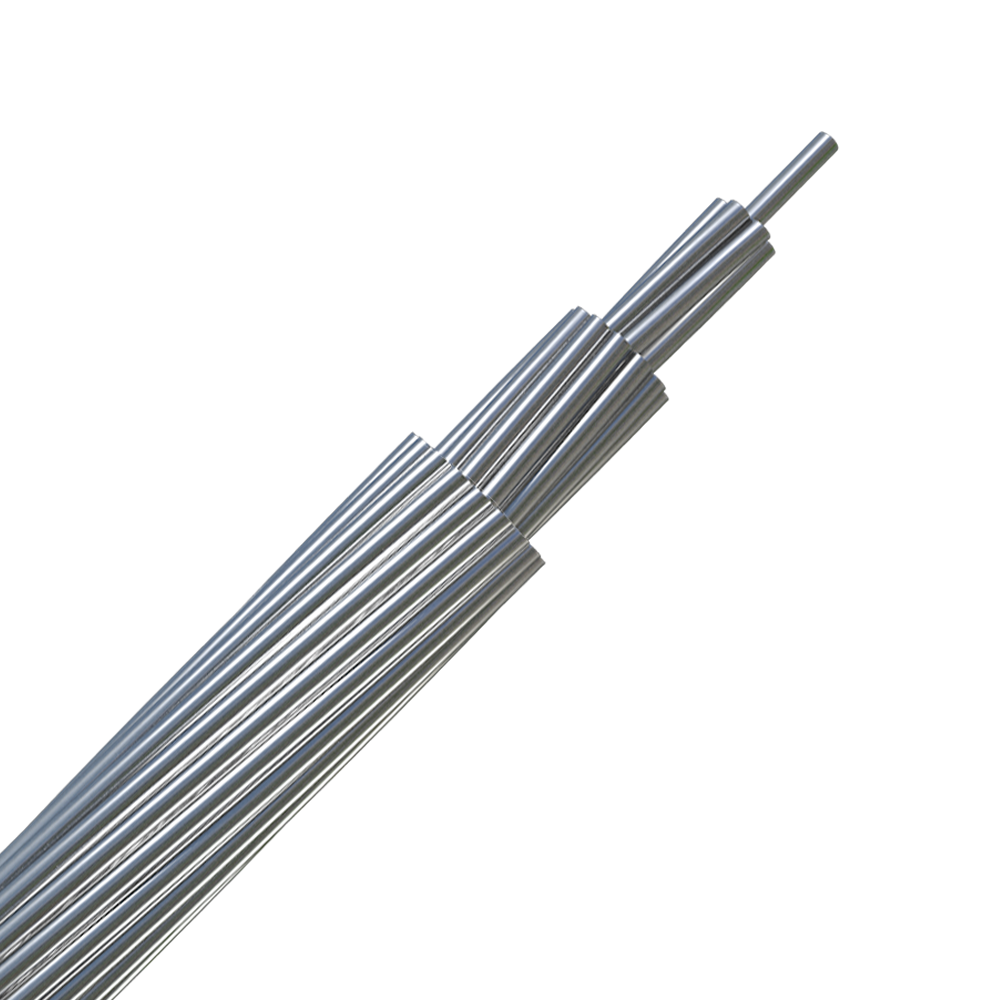

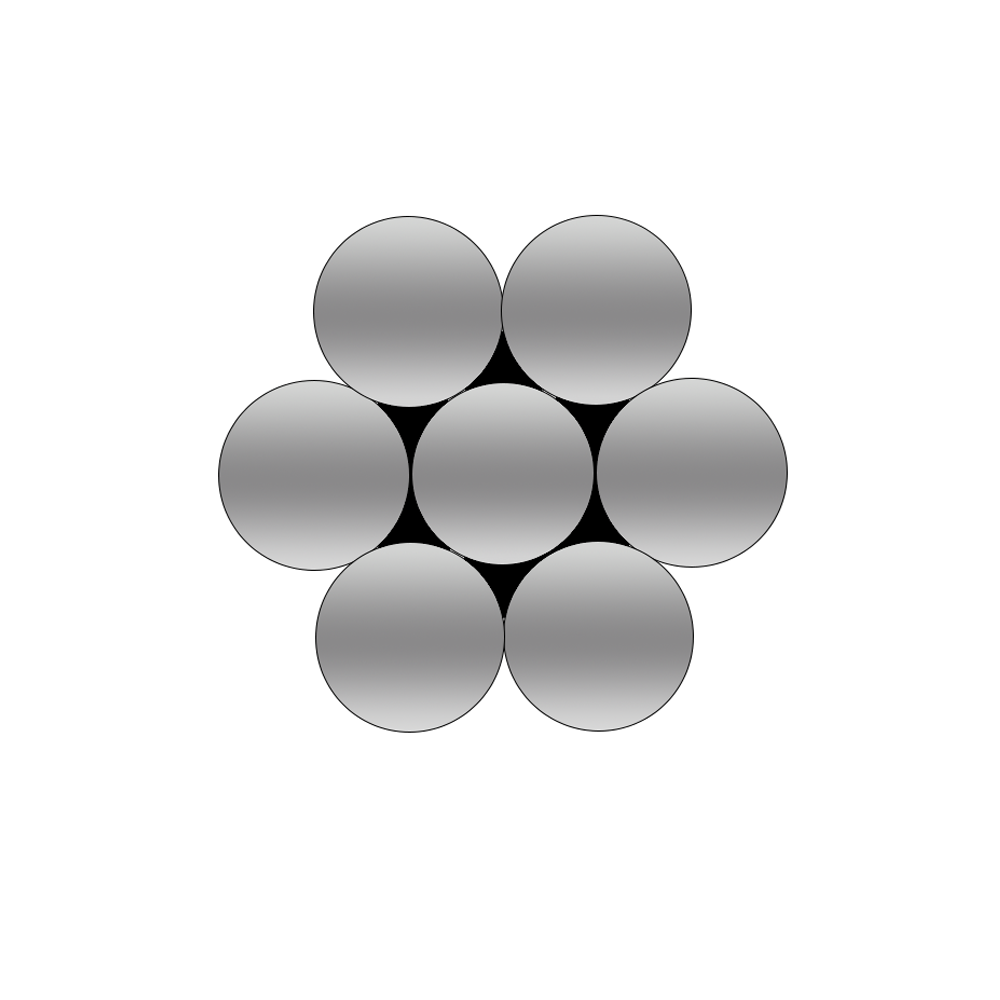

Aluminum Conductor Alloy Reinforced (ACAR) cable has aluminum 1350 H-19 wires stranded around a 6201-T81 aluminum alloy core concentrically

CHARACTERISTIC

Conductor type:

  • Max. Cross-section 3000MCM
  • Max. stranded number 91Nos

Standard

ASTMB230 Specification for Aluminum 1350-H19 Wire for Electrical Purposes

ASTM B398Specification for Aluminum Alloy 6201-T81 Wire for Electrical Purposes

ASTM B524 Specification for Concentric-Lay-Stranded Aluminum Conductors, Aluminum Alloy Reinforced (ACAR, 1350/6201)
