APPLICATION

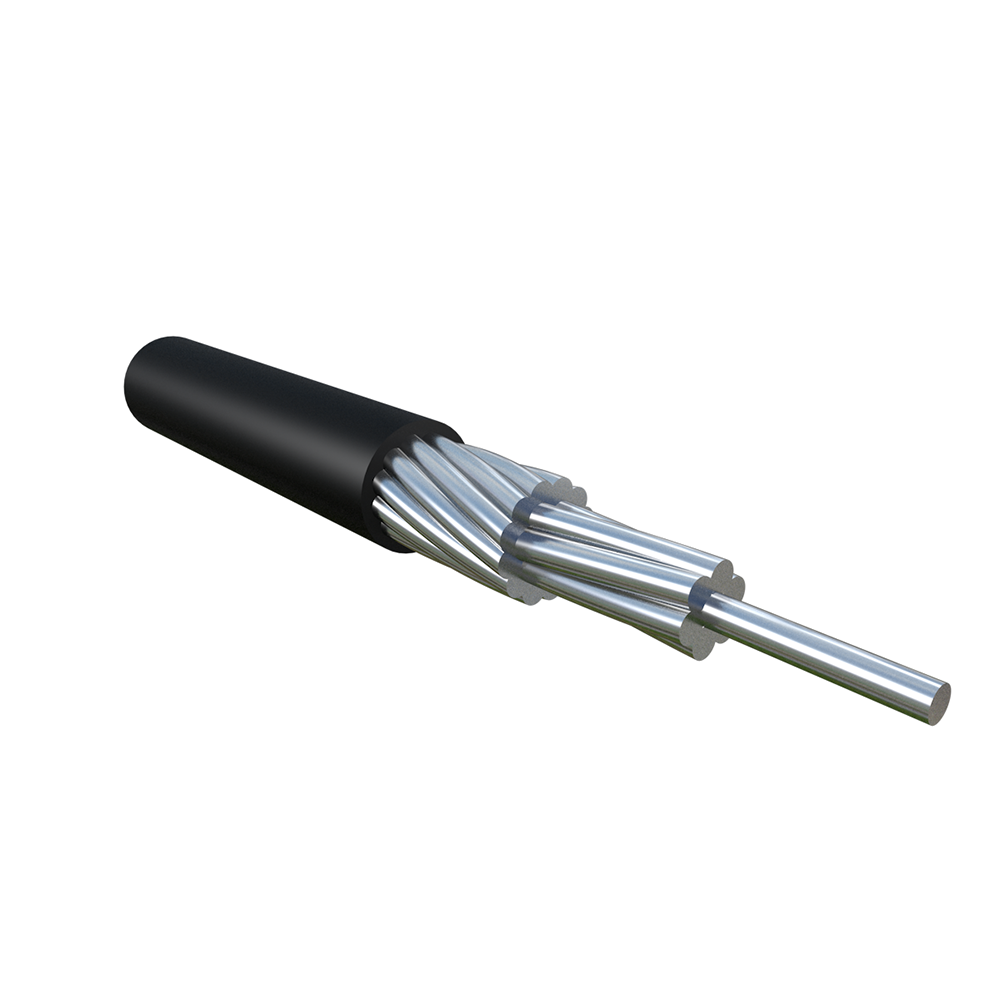

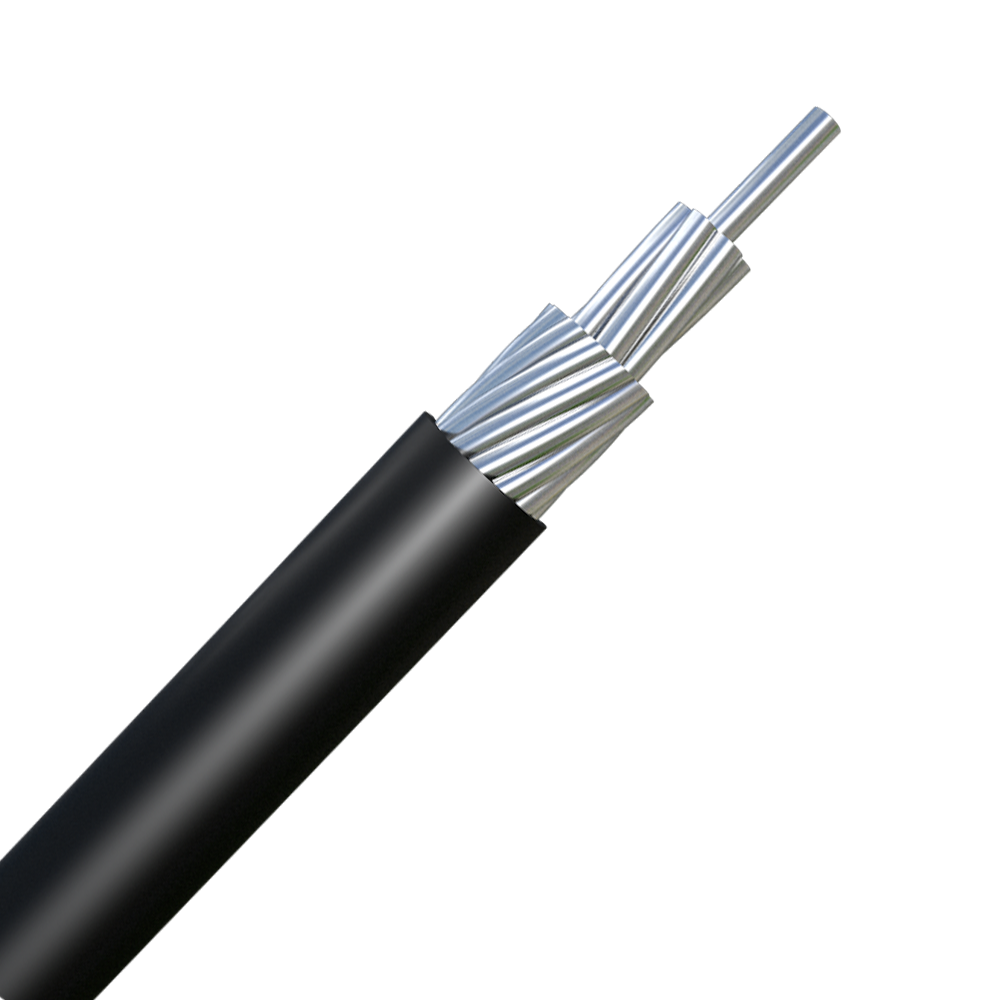

Aluminum Conductor Covered line wire
Aluminum Alloy 6201-T81 Conductor Covered Line wire
Aluminum Conductor Concentric-lay-Stranded Coated steel-Reinforced covered line wire
Used primarily for overhead and distribution lines

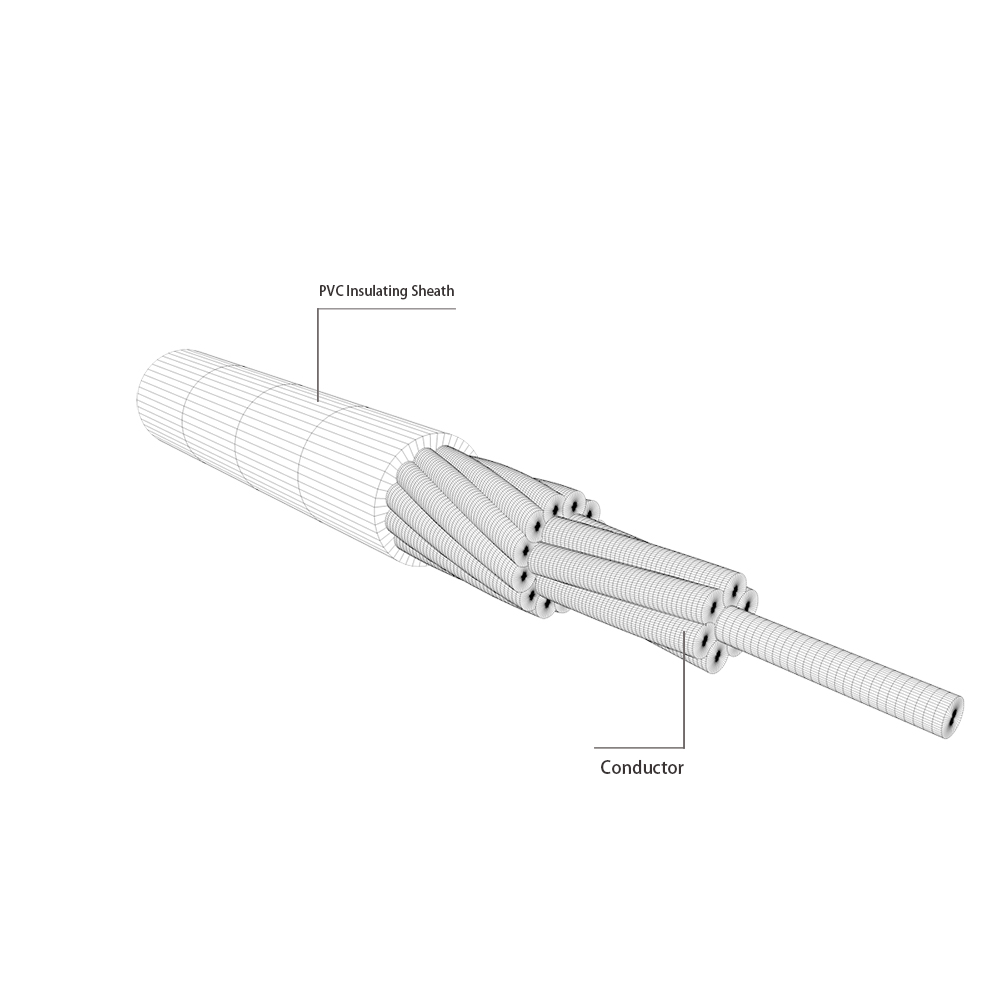

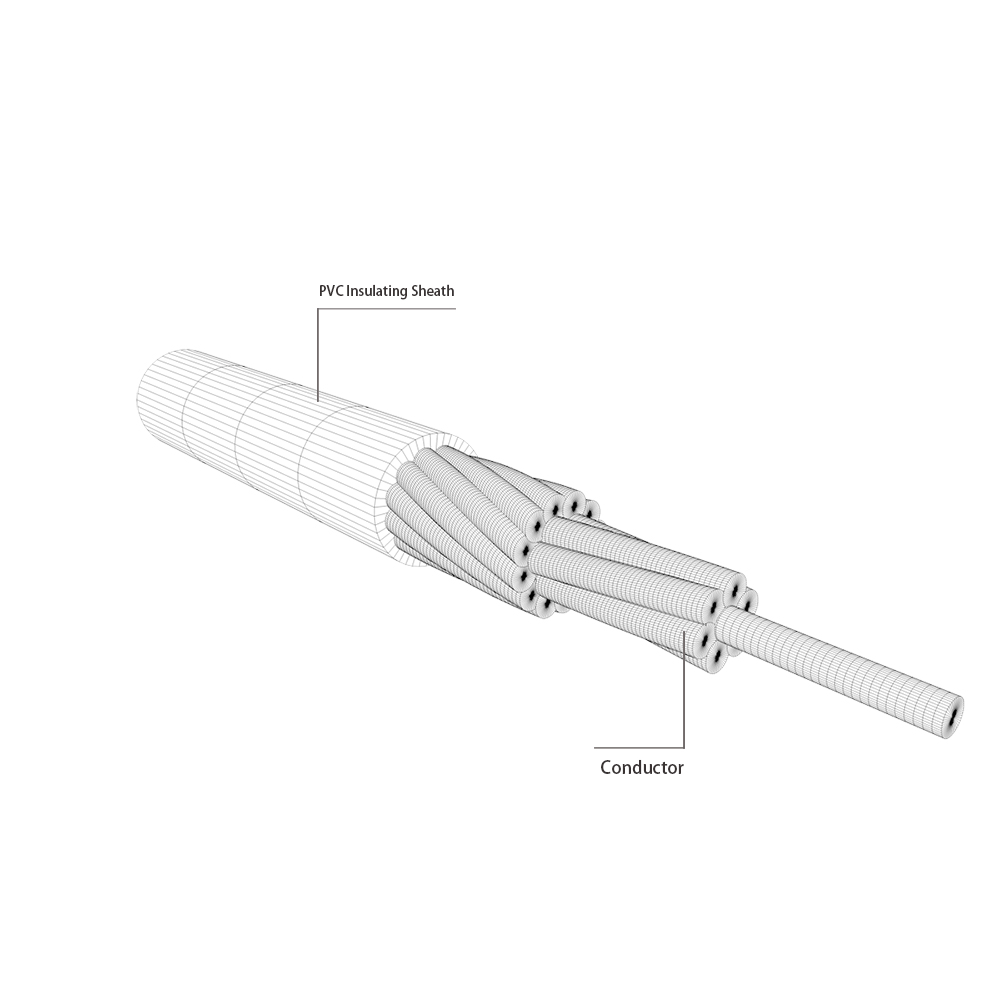

CONSTRUCTION

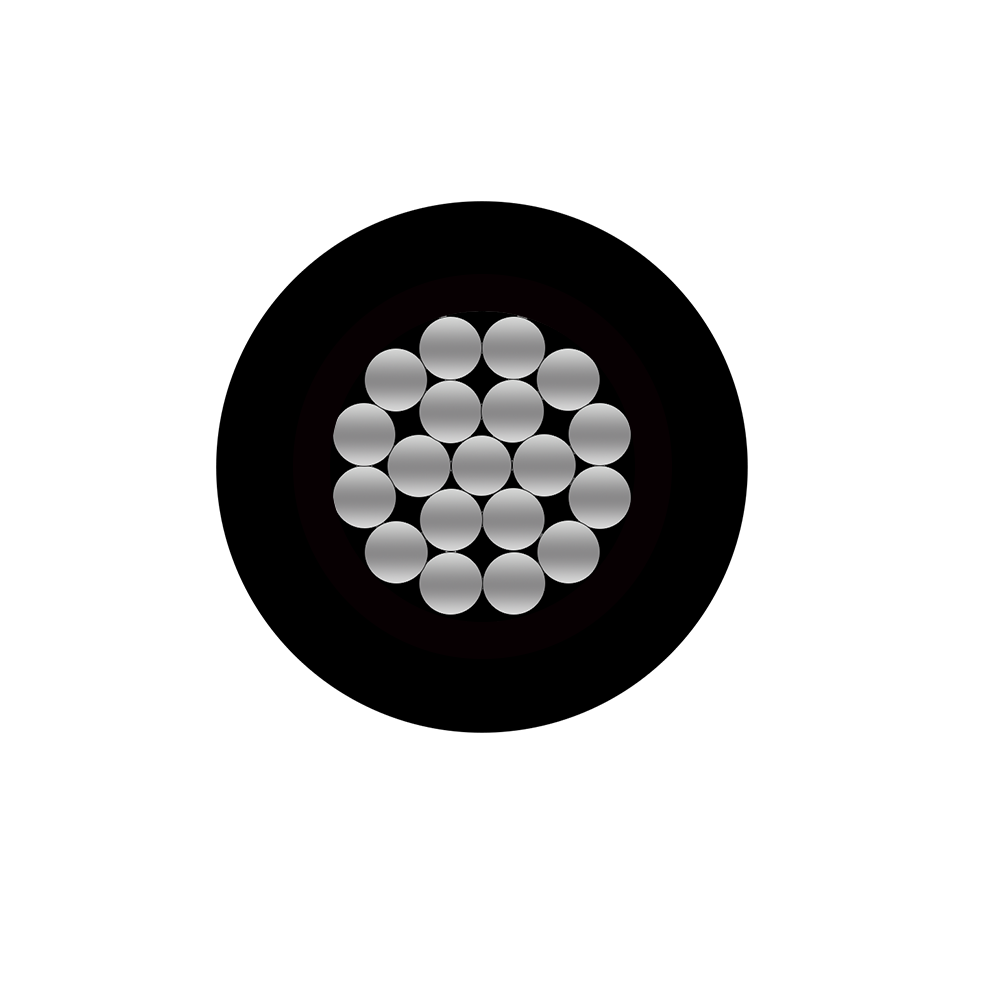

Conductor type: Aluminum 1350-H19, 6201-T81 or ACSR conductor
Number of core:single core
We can according to our client’s need and also provide technical data.
CHARACTERISTIC
Rated Voltage:600V
Test Voltage: AC 3000V/1Min
Maximum conductor operating temperature:
LDPE/HDPE Insulation conductor 75℃
XLPE Insulation conductor 90℃
Color of Insulation: Black and customer designated.
STANDARD
ANSI/ICEA S-70-547 Weather-resistance polyethylene insulated overhead conductor
ASTM B-230 Aluminum wire, 1350-H19 for Electrical Purposes
ASTM B-231 Aluminum conductors, concentric lay-stranded
ASTM B-232 Aluminum conductor, concentric-lay-stranded, coated steel-reinforced(ACSR)
ASTM B-399 Concentric-lay-stranded 6201-T81 aluminum alloy conductor
ASTM B-498 Zinc-Coated steel core wire for ACSR
NOTES
1.Ambient temperature for insulation shall not be lower than -20℃.
2.Weather-resistance,Ultra-violet（UV）stabilizer additives are available upon request.
3.Admissible bending radius to cable: When overall-diameter(D)is less than 25mm. it should be not less than 4D.
When overall diameter(D)is 25mm or more, it should be not less than 6D.
